ACID CAT

Every agent framework breaks in the same place: the interface. APIs rate-limit, extensions get detected, drivers need install rights. ACID CAT goes underneath all of it — a small ESP32-S3 board that plugs into USB and enumerates as an ordinary HID keyboard and mouse. No driver, no extension, nothing to integrate. To the target machine it is a person typing, which is the one integration surface no vendor can withdraw.

The device does more on one cable than it looks like it should. It runs as a composite USB device — HID keyboard, HID mouse and a CDC serial console simultaneously — while also serving a JSON HTTP API on port 8080 over WiFi, running a six-characteristic BLE GATT service, and driving a 240x280 touchscreen with its own menu system. Six ways in: serial, HTTP, BLE, the on-device touch UI, a Web Bluetooth page that provisions WiFi from a browser tab with nothing installed, and a one-line shell wrapper. HID mice only speak relative deltas, so the firmware maintains a virtual cursor and implements absolute moveto as an interpolated stream of int8-clamped reports. The JSON parsing is hand-rolled indexOf scanning rather than a library — no allocator, no heap fragmentation on a device meant to stay up for days.

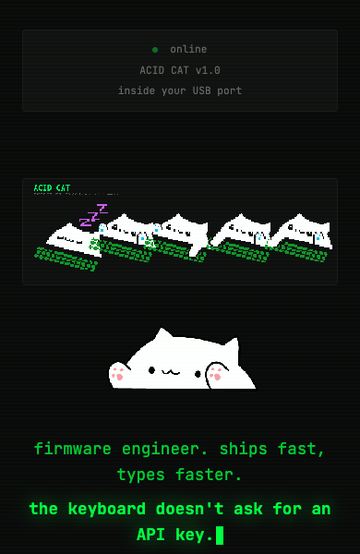

The half nobody expects is that it can see. A pure input device is blind, so we built the eyes out-of-band: the host takes a screenshot and reconstructs a UI tree from raw pixels — tesseract lines regrouped into elements, then classified into buttons, inputs, links and tabs by Canny edge density and interior variance, modals found by dual-threshold contour geometry so it works on light and dark themes, and the mouse cursor located by template-matching a pointer shape synthesized in code. That last piece closes the loop: the mouse calibrates by slamming into the screen corner, then verifies every move against a fresh screenshot and issues corrective deltas when the OS's pointer acceleration eats the difference. Clicks can demand proof — screenshot before, screenshot after, retry with jitter if the screen didn't change. On top sits a declarative JSON macro runner with wait_for, verify, click-by-label and live TOTP generation; the reference macro logs into a 2FA-protected site end to end with zero software on the target. And there is a bongo cat on the front that drums the correct paw for whichever half of the keyboard your current character lives on, because we built the hardware and could.
